Quick Details
Place of Origin: Hebei, China
Model Number: RP HP UHP
Type: Electrode Block
Application: For making steel
Length: 1500-2700mm
Grade: HP (High Power)
Resistance (¦Ì¦¸.m): 6.3~7.5
Apparent Density (g/cm3 ): 1.60~1.72
Thermal Expansion: 2.2~12.4
Flexural Strength (N/©O): 8.5~17

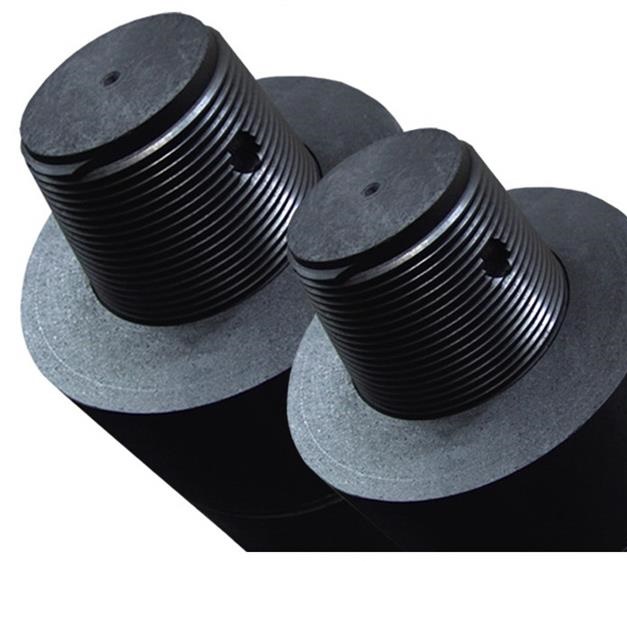

Nipple: 4TPI/3TPI
ASH: 0.3%
Packing: Wooden crates
ELASTIC MODULUS: 8.5~17
BULK DENSITY: 1.60~1.72

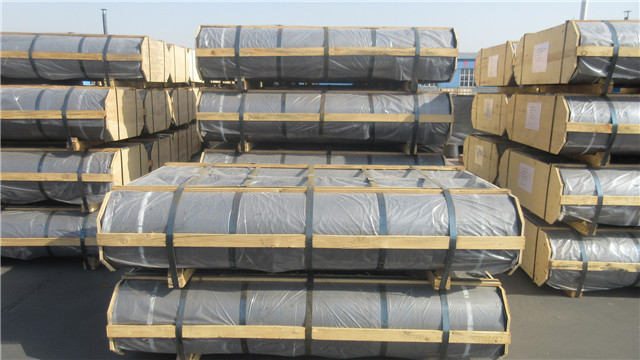

Packaging:
1. Standard export carton/plywood crate
2. Customized shipping mark
3. QC Department Will Check In Case The Packing Method Isn't Safe Enough.
Shipping:
1.By courier,like DHL,UPS,FEDEX,etc.It is door to door,usually,3-4 days to arrive.
2.By air to the air port,usually,5-7 days to arrive.
3.By sea to sea port,usually,15-30 days to arrive.
Port: Tianjin
Instructions of usage for Graphite Electrode:
Notes of usage:
1.To Place the nipples, first use compressed air to clean the hole, then carefully screwed the nipples into it (do not damage the
thread).
2.To connect the electrodes, when there's 20-30mm distance between the two electrodes, using compressed air to clean the two
extremes.
3.Connector locations should be selected c-map.
4.When use the wrenches to connect electrodes, should be fully tighten to specified torque.
5.To avoid electrode broken, please remove the insulating material in the furnace.
6.To avoid electrode broken, pls. place the big block in the lower and smaller block at the upper.
We can manafacture and export graphite electrodes in different grade ,shape and dimension.Whenever you need it ,please feel free
to let us know.we promise you the top quality and lower price.
