China Manufacturer UHP700 Conductivity UHP Carbon

Description

Usage :

Graphite  Electrodes  has good electrical properties and chemical resistance, which has high mechanical strength at high temperature and good seismic performance.It is good conductor of heat and electricity, widely used in electric arc furnace steelmaking, refining furnace, ferroalloy production, industrial silicon, phosphorus corundum and other submerged arc furnace with an electric arc furnace smelting and other high temperature furnace.

Features :

high physical volume density

super anti-press power

low rate of electric resistance

strong anti-oxidizes





Please contact us feel free to get more information.


Physical and Chemical Index of UHP



Items




Diameter: 700mm

Standard

Test data

Electrode

Nipple

Electrode

Nipple

Electrical resistance

¦Ì¦¸m

5.5-6.0

4.5

5.0-5.8

3.8

Flexure strength

Mpa

10.0

12.0

22.0

24.0

Modulus of elasticity

GPa

14.0

8.0

22.0

17.0

Ash content

%

0.2

0.2

0.2

0.2

Apparent density

g/cm3

1.66

1.69

1.78

1.80

Factor of expansion(100-600¡æ)

x10-6/¡æ

1.5

1.4

1.3

1.2

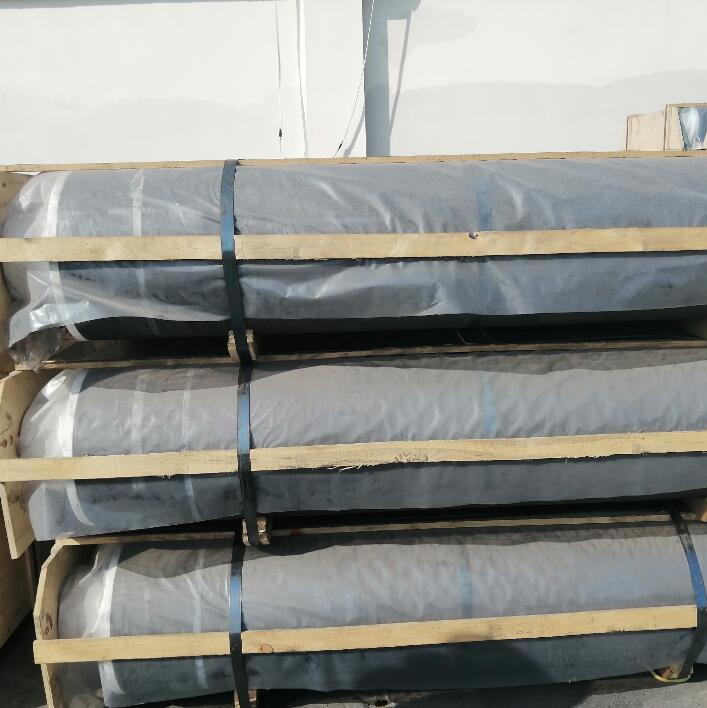

Delivery
