China Manufacturer High Carbon UHPGraphite Electro

Description

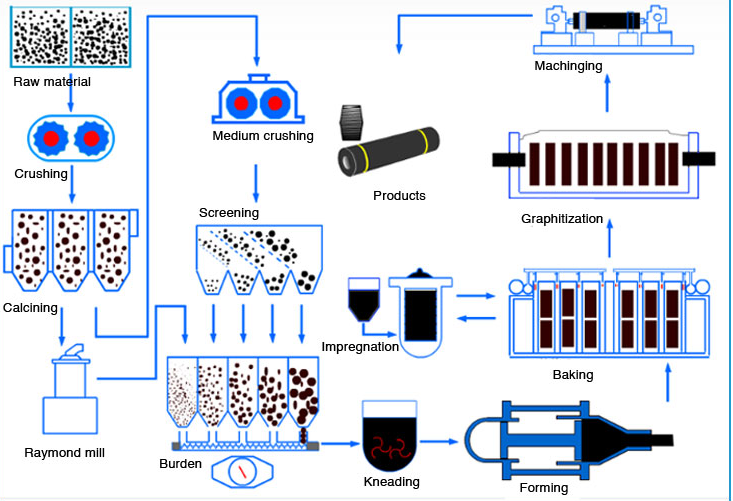

Artificial graphite electrode is made of high-quality low ash materials, such as petroleum coke, needle coke and coal pitch.after calcining,burdening,kneading,forming,baking and pressure impregnation, graphitization and then precision machined with professional CNC machining.such of the products own characteristics with low resistivity, good electrical conductivity ,low ash, compact structure,good anti oxidation and high mechanical strength, so it is the best conductive material for electric arc furnace and smelting furnace.

Physical and Chemical Index of UHP



Items




Diameter: 650mm

Standard

Test data

Electrode

Nipple

Electrode

Nipple

Electrical resistance

¦Ì¦¸m

5.5-6.0

4.5

5.0-5.8

3.8

Flexure strength

Mpa

10.0

12.0

22.0

24.0

Modulus of elasticity

GPa

14.0

8.0

22.0

17.0

Ash content

%

0.2

0.2

0.2

0.2

Apparent density

g/cm3

1.66

1.69

1.78

1.80

Factor of expansion(100-600¡æ)

x10-6/¡æ

1.5

1.4

1.3

1.2




Delivery



Pls contact us for free to get more details.
