    Description
    We offers the most demanded standard graphite electrodes and nipples. They are widely used in electric arc furnaces (EAF) and ladle furnaces (LF) for the melting of steel, non-ferrous metals and some non-metallic minerals.

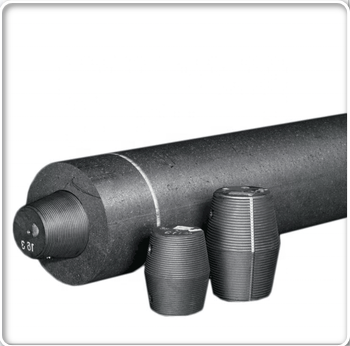

    UHP Graphite Electrode with Nipple
    Grade: UHP
    Diameter: 600mm
    Length: 2400/2700mm
    Nipple: 3TPI,4TPI

    Physical and Chemical Index of UHP



    Items




    Diameter: 600mm

    Standard

    Test data

    Electrode

    Nipple

    Electrode

    Nipple

    Electrical resistance

    ¦Ì¦¸m

    5.5-6.0

    4.5

    5.0-5.8

    3.8

    Flexure strength

    Mpa

    10.0

    12.0

    22.0

    24.0

    Modulus of elasticity

    GPa

    14.0

    8.0

    22.0

    17.0

    Ash content

    %

    0.2

    0.2

    0.2

    0.2

    Apparent density

    g/cm3

    1.66

    1.69

    1.78

    1.80

    Factor of expansion(100-600¡æ)

    x10-6/¡æ

    1.5

    1.4

    1.3

    1.2











    Pls contact us for free to get more details.
